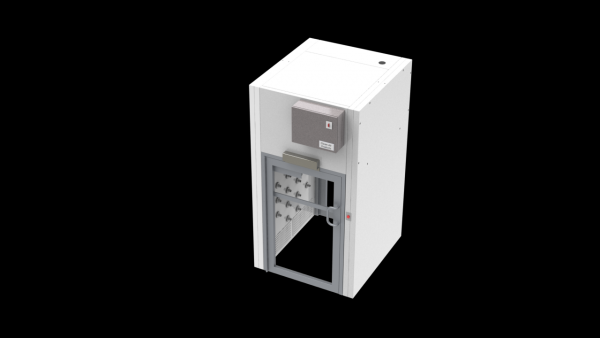

CAP701PT-ST Parts-Cleaning Straight-Thru Air Showers are available in a variety of sizes and configurations. They can be used with carts, conveyors, pallets and continuous-part operations. These cleanroom entry systems quickly and effectively remove particles that will otherwise be carried into your cleanroom.
Air Shower Frequently Asked Questions
Air Shower Frequently Asked Questions
Features
- Durable and Cleanroom-Approved Painted Cold Rolled Steel Shell
- No Silicone used - only Low-Outgassing Epoxy or Urethane Sealant
- Color LCD Touch Screen
- (2) Anodized Aluminum framed Safety Glass Doors with Hydraulic Door Closers
- Anodized Aluminum Fixed Bottom Door Sweeps
- (1) LED Recessed Light Fixture with Wall Switch
- (32) Adjustable Anodized Aluminum Nozzles
- (2) Adjustable Anodized Aluminum Ceiling Nozzles
- (2) Removable High Pressure Interior Nozzle Wall Panels
- (1) 5HP (3.7kW), 3600RPM Sealed Ball Bearing Continuous Duty Motor (Motor meets or exceeds U.S. EPAct and NRCan Canadian efficiency standards)
- (1) Superior Efficiency Direct Drive Aluminum Airfoil Wheel
- 7800 FPM (39.62 m/s) Average Nozzle Velocity
- 1900 CFM (0.9 m3/s) Average
- (1) 24x24x11.5, 99.99% HEPA Filter
- (1) Magnehelic Pressure Gage
- (4) Wall Return Air Grills with 10x20x1 MERV 8 Prefilters
- (1) 2-1/2 Inch Diameter Sprinkler Sleeve
- Programmable Microprocessor PLC with 0-99 second adjustable run time and 0-10 second adjustable wait ti
